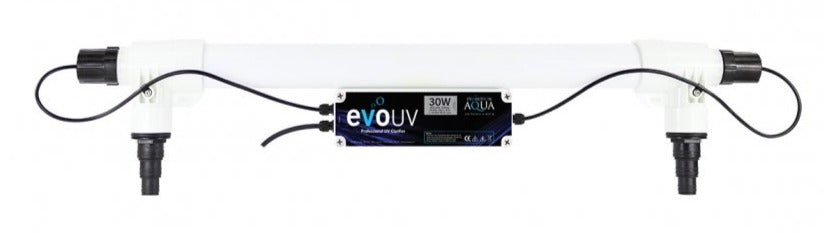

EVO 30w UVC

The Evolution Aqua evoUV deliver a more efficient and more economical performance than before thanks to their new design. The new range includes completely redesigned 30 Watt and 55 Watt models and a 110 UV, a 15 Watt and 25 Watt model perfect for use on the smaller garden pond, along with a 75 Watt version. Our new range of evoUV pond clarifiers have been manufactured to deliver optimum performance at all times. evoUVs have been designed to clear green water, which is caused by single celled green algae, and prevent it from returning.

• Eradicates green water in garden ponds
• Features highly efficient ballasts
• IP Rating of IPX5
• Easy to maintain, easy to install
• Ballast located in a fully water-tight cover
• Connects to flexi-hose or rigid pipework
• 6 models; 15W, 25W, 30W, 55W, 75W & 110W

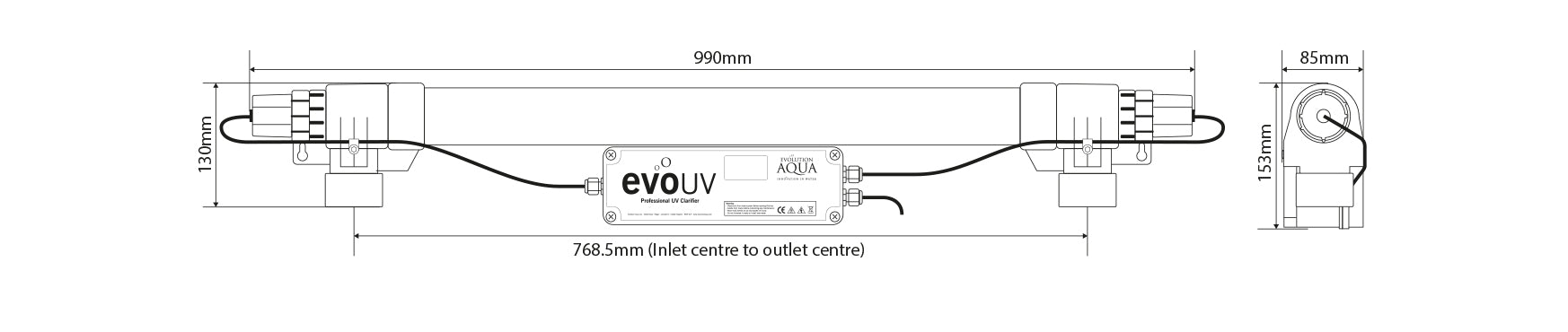

The overall dimensions of evo30 and evo55 are identical.

They are 990mm (l) x 85mm (w) x 153mm (h) excluding hosetails. The distance between the centre of the inlet and the centre of the outlet is 768.5mm. The evo30 uses a standard length 30W T8 UV bulb and the evo55 uses a standard 55W T8 UV bulb.

Installing the evoUV

PUMP-FED INSTALLATION

Install evoUV before the filter on the pipework run from the pond

GRAVITY-FED INSTALLATION

Install evoUV after the filter on the return to pond pipework run.



TECHNICAL DATA:

Model	Max. pond size	Max. flow rate	Bulb Power	Inlet/Outlet	Fittings supplied
	15,000 Litres 3,300 UK Gallons 3,963 US Gallons	7,500 Litres/hr 1,650 UK Gallons/hr 1,982 US Gallons/hr	15W (1 x 15W T8)	1½”	2 x 1½” Threaded Hosetails
	20,000 Litres 4,400 UK Gallons 5,284 US Gallons	10,000 Litres/hr 2,200 UK Gallons/hr 2,642 US Gallons/hr	25W (1 x 25W T8)	1½”	2 x 1½” Threaded Hosetails
	30,000 Litres 6,600 UK Gallons 7,925 US Gallons	15,000 Litres/hr 3,300 UK Gallons/hr 3,962 US Gallons/hr	30W (1 x 30W T8)	1½”	2 x 1½” Threaded Hosetails
	55,000 Litres 12,100 UK Gallons 14,530 US Gallons	20,000 Litres/hr 4,400 UK Gallons/hr 5,284 US Gallons/hr	55W (1 x 55W T8)	1½”	2 x 1½” Threaded Hosetails
	75,000 Litres 16,500 UK Gallons 19,815 US Gallons	25,000 Litres/hr 5,500 UK Gallons/hr 6,605 US Gallons/hr	75W (1 x 75W T8)	1½”	2 x 1½” Threaded Hosetails
	75,000 Litres 16,500 UK Gallons 19,815 US Gallons	25,000 Litres/hr 5,500 UK Gallons/hr 6,605 US Gallons/hr	110W (2 x 55W T8)	2″	No Fittings Supplied
