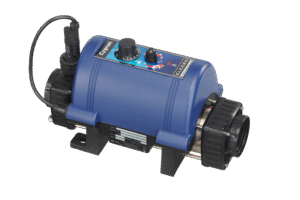

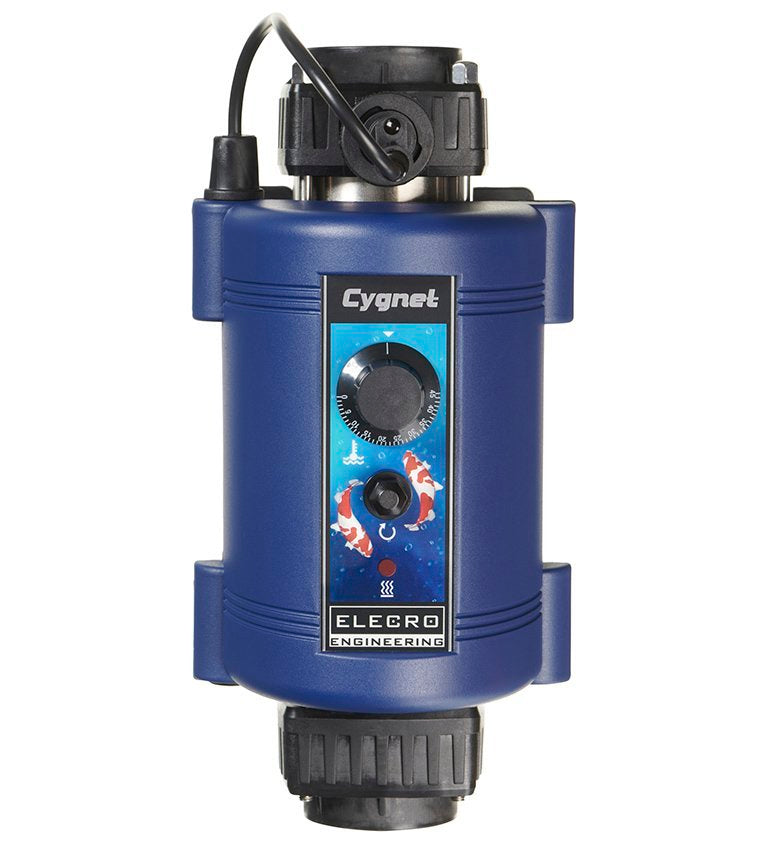

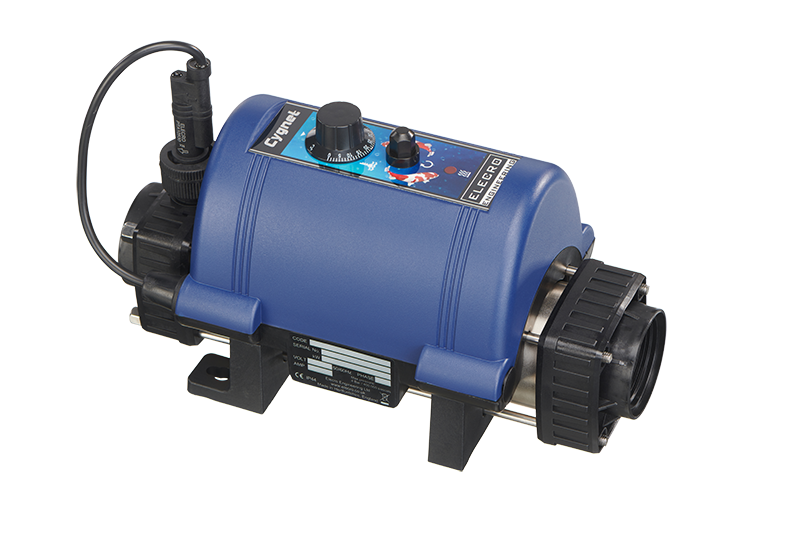

Elecro NANO Cygnet 4kW Analogue Heater (Titanium Element)

Specifically designed to ensure maximum safety, reliability and efficiency, the Cygnet Aquatic heater is user-friendly and offers “plug & play” installation for the 1-kW to 4-kW models. The thermostat dial gives you control over the desired pond temperature, while the thermal cut-out protects against over-heating.

FEATURES & BENEFITS

Various power options ranging from 1-kW to 4-kW
Easy installation, fully equipped and pre-wired
Robust, durable construction
Ultra-reliable flow switch allows safe operation
Supplied with temperature thermostat and overheating sensor
Compact, durable design
Analogue control with 1.2°C differential
Titanium flow tube and titanium heating element
Can be floor or vertically wall mounted
Vortex, long life, stay clean heating element technology
100% efficiency throughout the product life
Silent operation

TECHNICAL DATA

Power Supply	220-240V single phase
Flow Requirements	Minimum flow: 1m³/h Maximum flow: 17m³/h
Heating Element	Grade 1 titanium
Flow Tube	Grade 1 titanium
Control Thermostat	Analogue: 0>45°C (1.2°C differential)
Safety Thermal Cut Out	60°C (manual reset)
Flow Switch	Gold tipped reed switch with titanium fulcrum pin
Relay	Surface mount DPDT Finder 66.82.8.230.0000
Seals	High temperature special formula EPDM ferrules, TPE end fitting gaskets
Water Connections	1.5″ BSP female thread supplied with 1½” / 50mm stepped ABS unions for rigid pipe and 1½” / 1¼” stepped hose tails for flexible pipe
Ingress Protection Rating	IP44
Frequency	50/60 Hz
Working Pressure	4 bar maximum
Mounting	Floor or wall mounting
